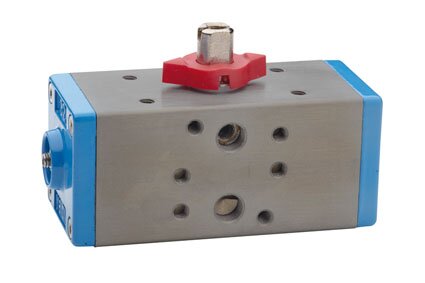

Technische Spezifikationen

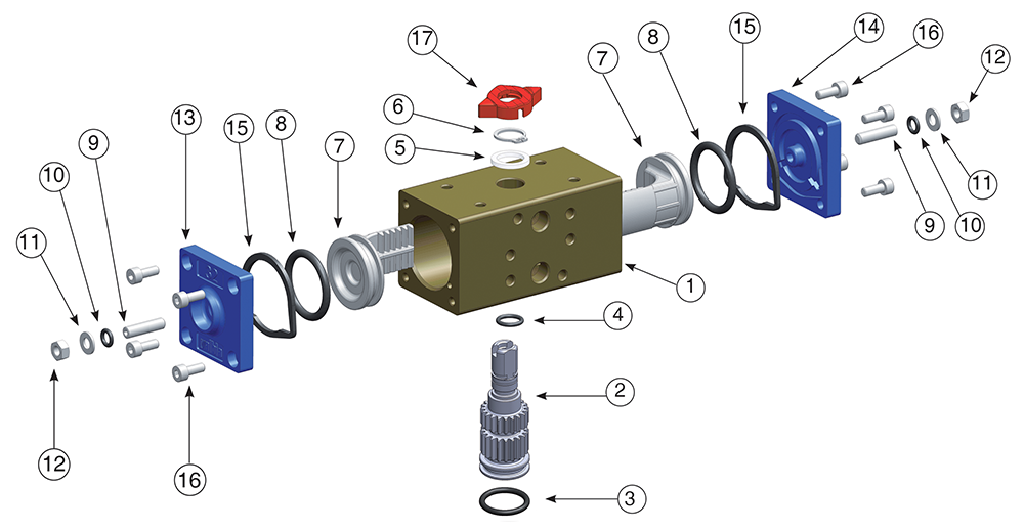

Position Teilname Material Treatment Nr. Stück
1 Body Extruded aluminium Hard anodized 1
2 Anti-blowout pinion Steel Nickel plated 1
• 3 O-ring NBR/FKM - 1
• 4 O-ring NBR/FKM - 1
• 5 Spacer ring POM - 1
6 Snap ring Steel Nickel plated 1
7 Piston Die cast aluminium - 2
• 8 O-ring NBR/FKM - 2
9 Stop bolt Stainless steel - 2
• 10 O-ring NBR/FKM - 2
11 Washer Stainless steel - 2
12 Stop boltretaining nut Stainless steel - 2
13 Left end cap Die cast aluminium Painted 1
14 Right end cap Die cast aluminium Painted 1
15 End cap seats NBR/FKM - 2
16 End cap fixing screw Stainless steel - 8
17 Position indicator Gomma termoplastica TPEThermoplastic rubber TPE - 1

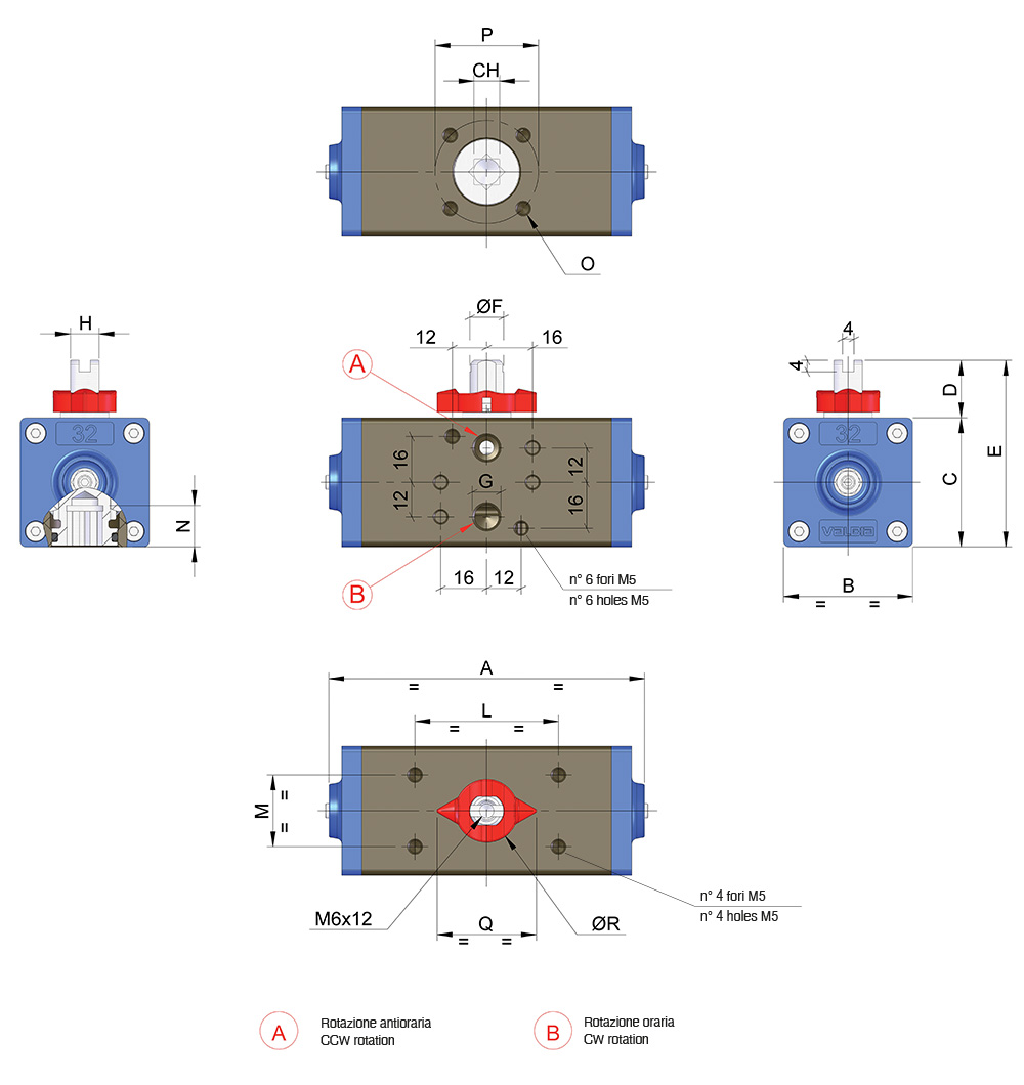

MOD FORATURA DRILLING ISO 5211 CH A B C D E ØF G ISO 7/1 H L M N O P Q øR
MOD. 32 F03 9 110 45 45 20 65 11,8 1/8” 10 50 25 12 M5x7,5 36 34,5 22
