BUTTERFLY PNEUMATIC PACKAGES

8P020200

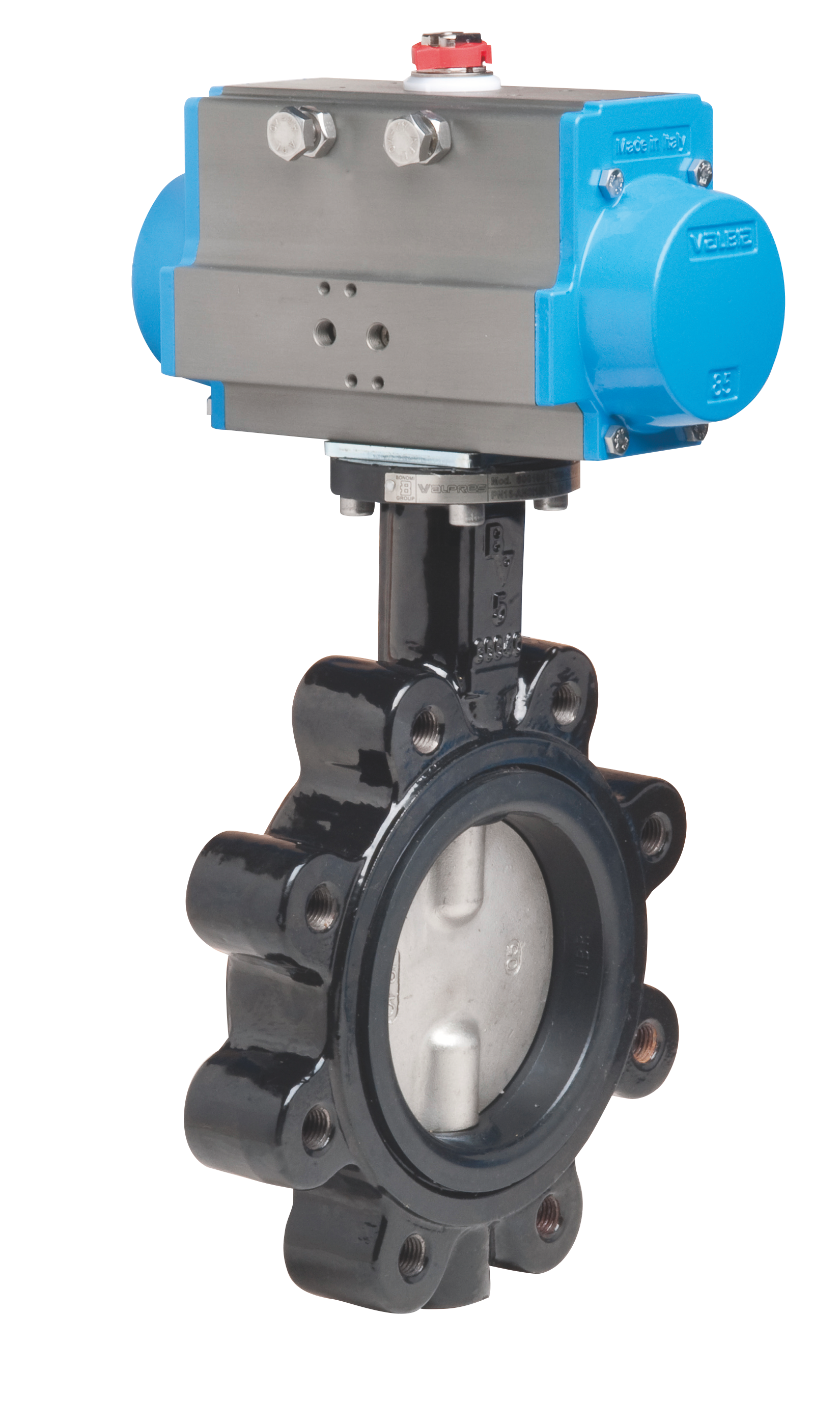

Butterfly valve Lug type PN16 (from DN50 to DN300), PN10 (from DN350 to DN600), body in cast iron GGG40 +epoxy painting, disc GGG40 nickeled, EPDM [Valpres art. 600204] or NBR [Valpres art. 600231] from DN50 to DN300 EPDM seat art. 905277 from DN350 to DN600.
Technical specifications

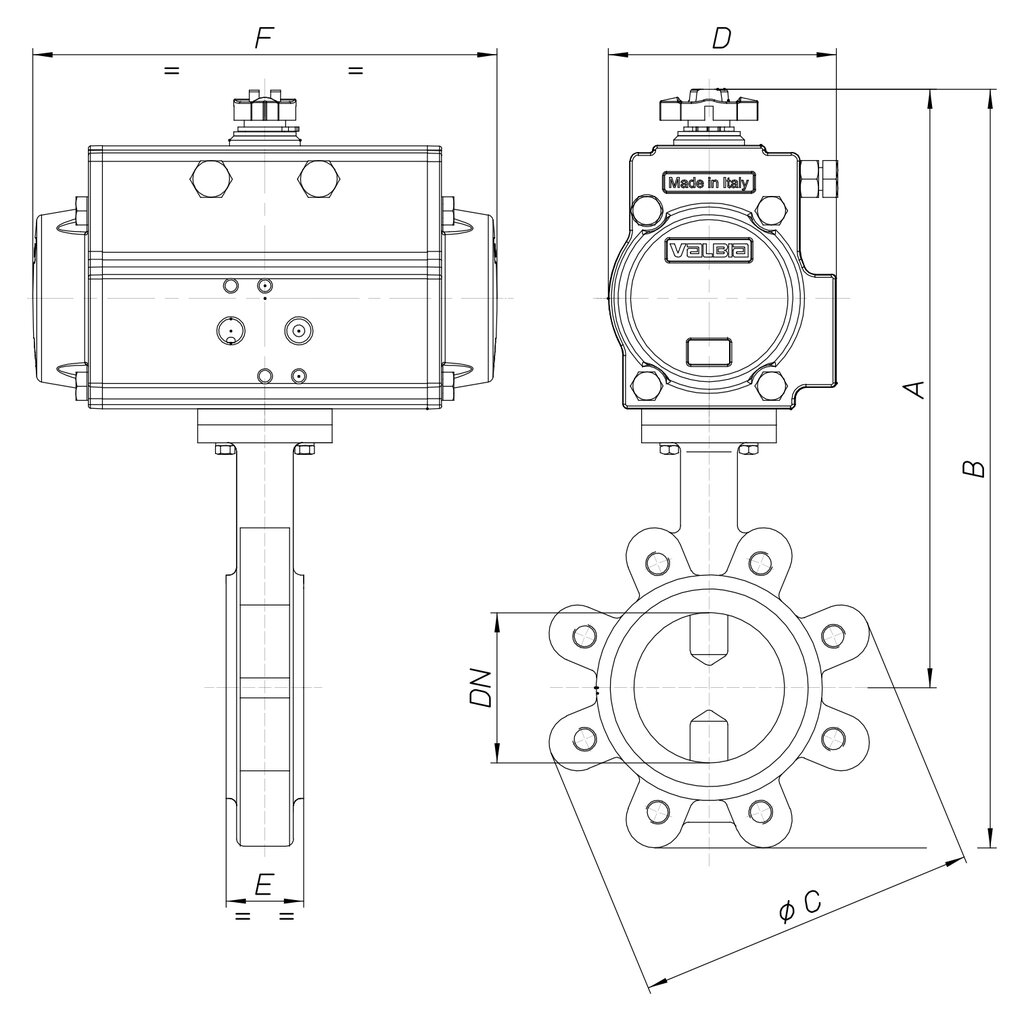

MOD PN A B ØC D E F ACT. RI
8P02020010 16 266 338 165 81 43 164 SR 63 3843
8P02020012 16 279 357 185 81 46 164 SR 63 3843
8P02020014 16 312 401 200 106 46 241 SR 85 3844
8P02020018 16 328 430 220 106 52 241 SR 85 3840
8P02020019 16 354 477 250 123 56 275 SR 100 3846
8P02020020 16 398 536 285 137 56 333 SR 115 4450
8P02020021 16 493 661 340 186 60 500 SR 160 3848
8P02020077 16 524 731 405 186 68 500 SR 160 3867
8P02020078 16 697 940 406 217 78 579 SR 200 3309
