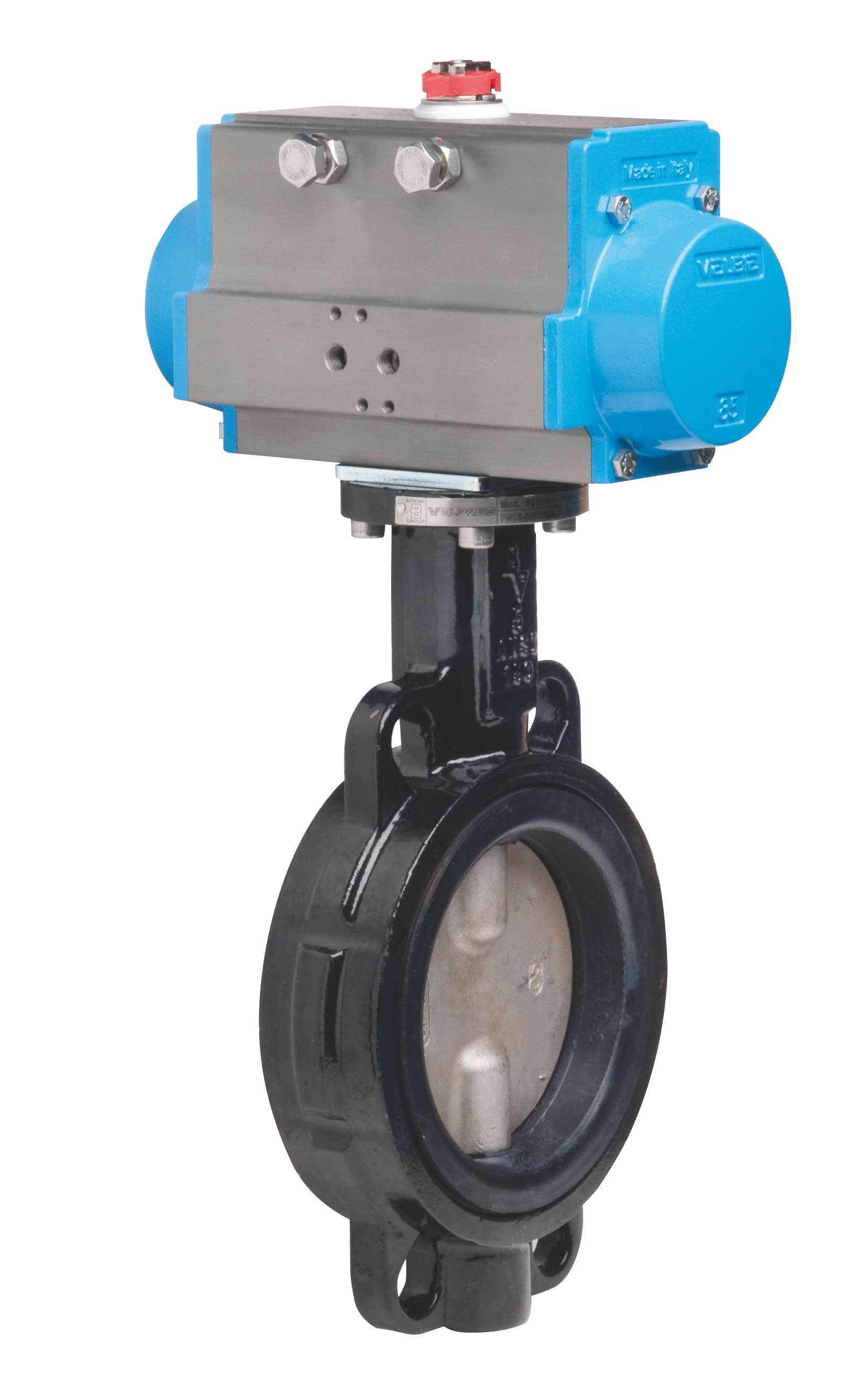

BUTTERFLY PNEUMATIC PACKAGES

8P019600

Butterfly valve Wafer type PN16 (from DN50 to DN300), PN10 (from DN350 to DN600), body in cast iron GG25+ epoxy painting, disc GGG40 nickeled, EPDM [Valpres art. 600104] or NBR [Valpres art. 600117] seat from DN50 to DN300, EPDM seat art. 905276 from DN350 to DN600.
Technical specifications

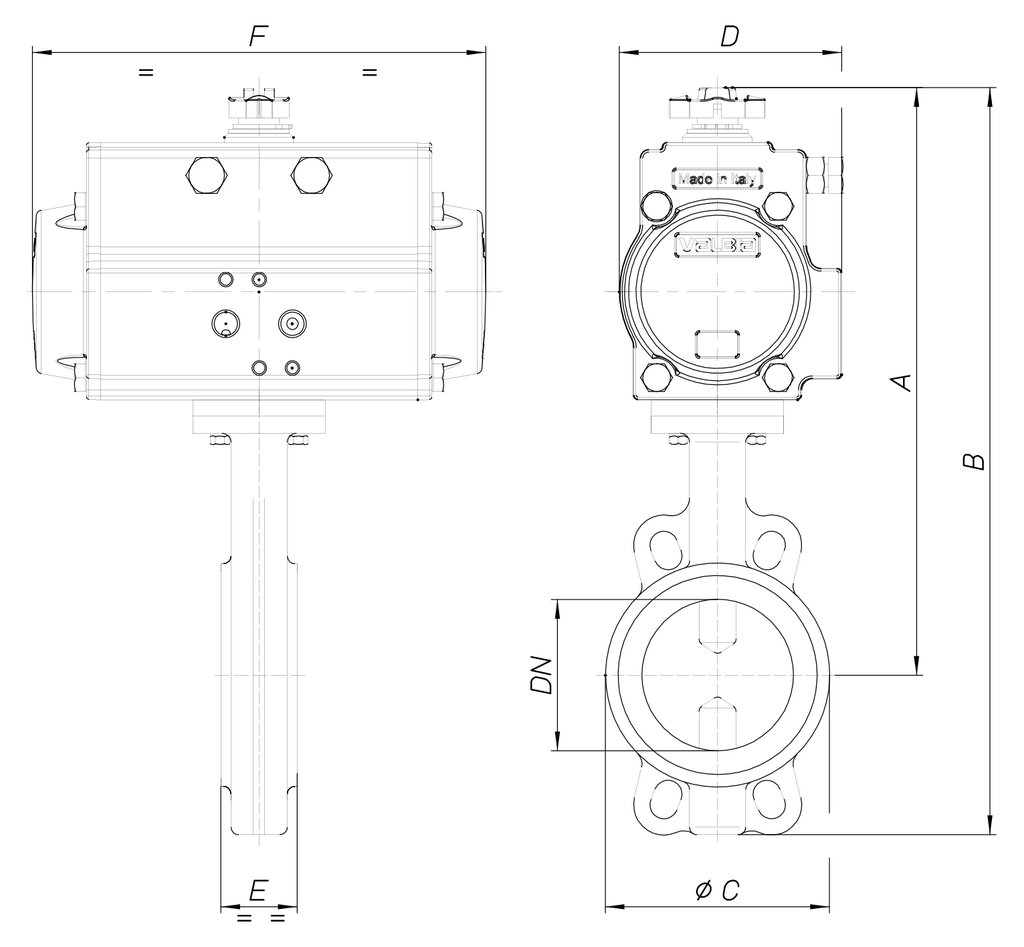

MOD PN A B Ø C D E F ACT. RI
8P01960010 16 266 338 100 81 43 164 SR 63 3843
8P01960012 16 279 357 120 81 46 164 SR 63 3843
8P01960014 16 312 401 127 106 46 241 SR 85 3844
8P01960018 16 328 430 161 106 52 241 SR 85 3840
8P01960019 16 354 477 190 123 56 275 SR 100 3846
8P01960020 16 366 504 215 123 56 275 SR 115 4450
8P01960021 16 469 637 268 164 60 435 SR 160 3848
8P01960077 16 524 731 325 186 68 500 SR 160 3867
8P01960078 16 672 915 375 213 78 493 SR 200 3309
