2 WAY PNEUMATIC PACKAGES

8P003700

2 way Wafer ball valve [Valpres art. 722000] PN16 flanged, full bore, carbon steel ASTM A105, with ball and stem in stainless steel AISI 304.

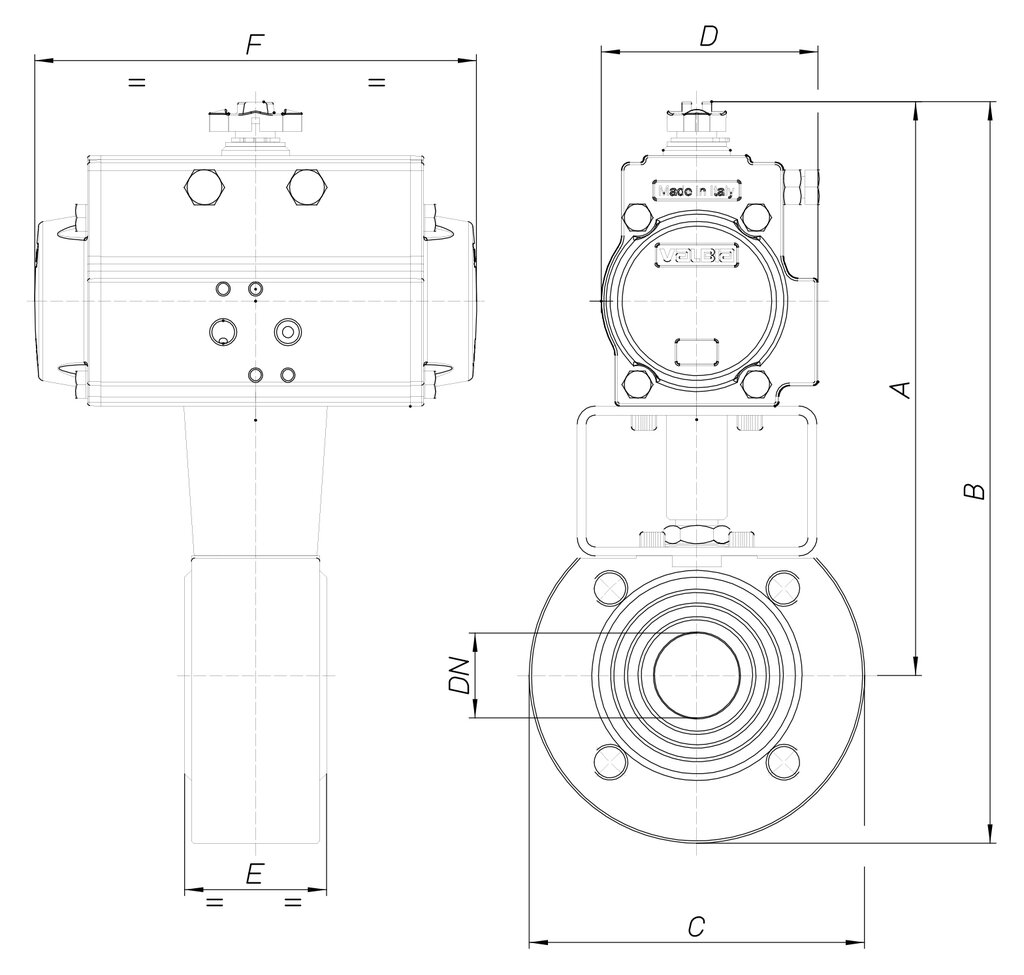

Technical specifications

MOD	PN	A	B	C	D	E	F	ACT.	RI
8P00370004	16	183	228	90	71	35	141	SR 52	3780
8P00370005	16	200	250	100	81	40	164	SR 63	3014
8P00370006	16	205	260	110	81	46	164	SR 63	3007
8P00370007	16	212	277	130	81	54	164	SR 63	3048
8P00370008	16	259	329	140	106	64	241	SR 85	3009
8P00370010	16	281	356	150	123	82	275	SR 100	3009
8P00370012	16	349	437	175	137	103	333	SR 115	3010
8P00370014	16	372	466	190	148	122	372	SR 125	3010
8P00370018	16	387	497	220	148	152	372	SR 125	3005
8P00370019	16	432	557	250	164	196	435	SR 140	3037
8P00370020	16	481	631	300	186	232	500	SR 160	3039
8P00370021	16	-	-	-	-	-	-	-	-
