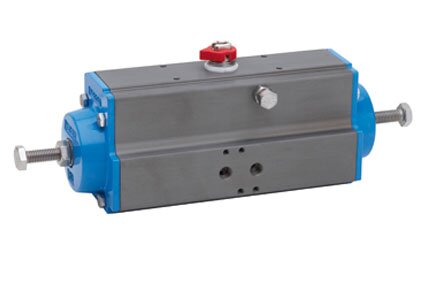

Technical specifications
Drawing
Materials
POSITION PART NAME MATERIAL N.° PIECES
1 Body Extruded aluminium 1
2 Anti-blowout pinion Steel 1
3 O-ring NBR 1
4 Spacer ring POM 1
5 O-ring NBR 1
6 Cam Stainless steel 1
7 Spacer POM 1
8 O-ring NBR 1
9 Spacer POM 1
10 Washer Stainless steel 1
11 Snap ring Steel 1
12 Position indicator Thermoplastic rubber TPE 1
13 Piston Die cast aluminium 2
14 O-ring NBR 2
15 Antifriction ring POM 2
16 Thrust block POM 2 [4]
17 Washer Stainless steel 2 [0]
18 Stop bolt retaining nut Stainless steel 1
19 Stop bolt Stainless steel 1
20 Left end cap Die cast aluminium 1
21 Right end cap Die cast aluminium 1
22 O-ring NBR 2
23 End cap seats NBR 2
24 End cap fixing screw Stainless steel 8
25 O-ring NBR 2
26 Washer Stainless steel 2
27 Stop bolt retaining nut Stainless steel 2
28 Stop bolt Stainless steel 2
Table
CODE FORATURA DRILLING ISO 5211 CH A B C D E F G H ØI ØK L M N O P Q R S T U ØV Z(MAX)
MOD. 52 F03-F05 11 197 71 30 41 81,5 20 101,5 10 21 12 80 30 12 26.5 50 36 M5X7,5 M6X9 1/8” 17 22 282
Notes
Reinforced series DIN471-UNI7436 Valid for mod.140-160 Parts subject to wear The dimension of the adjustment screws change according to the angle of rotation needed.
