PNEUMATIC ACTUATORS SERIES 82-83-84
/
PNEUMATIC ACTUATORS SERIES 82
/
MOD. 52

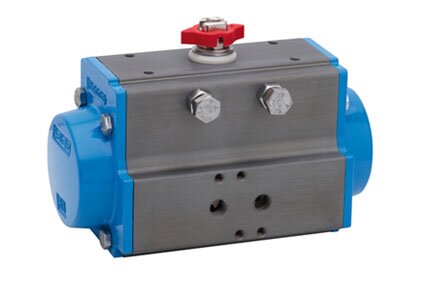

PNEUMATIC ACTUATORS SERIES 82

MOD. 52

Technical specifications
Position Part name Material Treatment N.° pieces
1 Body Extruded aluminium Ossidato duro - Hard anodized 1
*2 Anti-blowout pinion Steel Nichelato - Nickel plated 1
*3 O-ring NBR - 1
*4 Spacer ring POM - 1
*5 O-ring NBR - 1
*6 O-ring NBR - 1
7 Cam Stainless steel - 1
8 Spacer POM - 1
*9 Anello sotto seeger -Spacer POM - 1
10 Washer Stainless steel - 1
**11 Snap ring Steel Nichelato - Nickel plated 1
12 Piston Die cast aluminium - 2
*13 O-ring NBR - 2
*14 Antifriction ring POM - 2
*15 Thrust block POM - 2 [4]
16 Stop bolt retaining nut Stainless steel - 2
17 Stop bolt Stainless steel - 2
18 External spring Steel Verniciata - Painted -
***19 Central spring Steel Verniciata - Painted -
20 Internal spring Steel Verniciata - Painted -
21 Left end cap Die cast aluminium Verniciato - Painted 1
22 Right end cap Die cast aluminium Verniciato - Painted 1
23 End cap seats NBR - 2
24 O-ring NBR - 2
25 End cap fixing screw Stainless steel - 8
26 Position indicator Gomma termoplastica TPEThermoplastic rubber TPE - 1
MOD FORATURA DRILLING ISO 5211 CH A B C D E F G H Ø I ØK L M N O P Q R S T ISO 7/1 U øV
MOD. 52 F03-F05 11 141 71 30 41 81,5 20 101,5 10 21 12 80 30 12 26,5 50 36 M5X7,5 M6X9 1/8” 34,5 22
Applications
Available media and videos
Catalog
Price list
Spare Parts
PNEUMATIC ACTUATORS SPARE PARTS
Code Material Size
RI3385 MOD. 52
RI3385 MOD. 52
RI3385 MOD. 52
RI3386 MOD. 63
RI3386 MOD. 63
RI3386 MOD. 63
RI3387 MOD. 75
RI3387 MOD. 75
RI3387 MOD. 75
RI3388 MOD. 85
RI3388 MOD. 85
RI3388 MOD. 85
RI3389 MOD. 100
RI3389 MOD. 100
RI3389 MOD. 100
RI3390 MOD. 115
RI3390 MOD. 115
RI3391 MOD. 125
RI3391 MOD. 125
RI4048 MOD. 140
RI4048 MOD. 140
RI4738 MOD. 160
RI4738 MOD. 160
RI4600 MOD. 180
RI4746 MOD. 200
RI4601 MOD. 230
RI3531 MOD. 270
RI4602 MOD. 330
RI3101 MOD. 32
RI4603 MOD. 52
RI4603 MOD. 52
RI4603 MOD. 52
RI4604 MOD. 63
RI4604 MOD. 63
RI4604 MOD. 63
RI4605 MOD. 75
RI4605 MOD. 75
RI4605 MOD. 75
RI4606 MOD. 85
RI4606 MOD. 85
RI4606 MOD. 85
RI4607 MOD. 100
RI4607 MOD. 100
RI4607 MOD. 100
RI4608 MOD. 115
RI4608 MOD. 115
RI4609 MOD. 125
RI4609 MOD. 125
RI4610 MOD. 140
RI4610 MOD. 140
RI4611 MOD. 160
RI4611 MOD. 160
RI4612 MOD. 180
RI4613 MOD. 200
RI4614 MOD. 230
RI4615 MOD. 270
RI4616 MOD. 330
RI3326 MOD. 32
RI4617 MOD. 52
RI4617 MOD. 52
RI4617 MOD. 52
RI4618 MOD. 63
RI4618 MOD. 63
RI4618 MOD. 63
RI4619 MOD. 75
RI4619 MOD. 75
RI4619 MOD. 75
RI4620 MOD. 85
RI4620 MOD. 85
RI4620 MOD. 85
RI4621 MOD. 100
RI4621 MOD. 100
RI4621 MOD. 100
RI4622 MOD. 115
RI4622 MOD. 115
RI4623 MOD. 125
RI4623 MOD. 125
RI4624 MOD. 140
RI4624 MOD. 140
RI4625 MOD. 160
RI4625 MOD. 160
RI4626 MOD. 180
RI4627 MOD. 200
RI4628 MOD. 230
RI4629 MOD. 270
RI4630 MOD. 330
RI4631 MOD. 52
RI4631 MOD. 52
RI4631 MOD. 52
RI4632 MOD. 63
RI4632 MOD. 63
RI4632 MOD. 63
RI4633 MOD. 75
RI4633 MOD. 75
RI4633 MOD. 75
RI4634 MOD. 85
RI4634 MOD. 85
RI4634 MOD. 85
RI4635 MOD. 100
RI4635 MOD. 100
RI4635 MOD. 100
RI4636 MOD. 115
RI4636 MOD. 115
RI4637 MOD. 125
RI4637 MOD. 125
RI4638 MOD. 140
RI4638 MOD. 140
RI4639 MOD. 160
RI4639 MOD. 160
RI4640 MOD. 180
RI4641 MOD. 200
RI4642 MOD. 230
RI4643 MOD. 270
RI4644 MOD. 330
RI4645 MOD. 52
RI4645 MOD. 52
RI4645 MOD. 52
RI4646 MOD. 63
RI4646 MOD. 63
RI4646 MOD. 63
RI4647 MOD. 75
RI4647 MOD. 75
RI4647 MOD. 75
RI4648 MOD. 85
RI4648 MOD. 85
RI4648 MOD. 85
RI4649 MOD. 100
RI4649 MOD. 100
RI4649 MOD. 100
RI4650 MOD. 115
RI4650 MOD. 115
RI4651 MOD. 125
RI4651 MOD. 125
RI4652 MOD. 140
RI4652 MOD. 140
RI4653 MOD. 160
RI4653 MOD. 160
RI4654 MOD. 180
RI4655 MOD. 200
RI4656 MOD. 230
RI4657 MOD. 270
RI4658 MOD. 330
RI4659 MOD. 52
RI4659 MOD. 52
RI4659 MOD. 52
RI4660 MOD. 63
RI4660 MOD. 63
RI4660 MOD. 63
RI4661 MOD. 75
RI4661 MOD. 75
RI4661 MOD. 75
RI4662 MOD. 85
RI4662 MOD. 85
RI4662 MOD. 85
RI4663 MOD. 100
RI4663 MOD. 100
RI4663 MOD. 100
RI4664 MOD. 115
RI4664 MOD. 115
RI4665 MOD. 125
RI4665 MOD. 125
RI4666 MOD. 140
RI4666 MOD. 140
RI4667 MOD. 160
RI4667 MOD. 160
RI4668 MOD. 180
RI4669 MOD. 200
RI4670 MOD. 230
RI4657 MOD. 270
RI4658 MOD. 330
RI3156 MOD. 32
RI4673 MOD. 52
RI4673 MOD. 52
RI4673 MOD. 52
RI4674 MOD. 63
RI4674 MOD. 63
RI4674 MOD. 63
RI4675 MOD. 75
RI4675 MOD. 75
RI4675 MOD. 75
RI4676 MOD. 85
RI4676 MOD. 85
RI4676 MOD. 85
RI4677 MOD. 100
RI4677 MOD. 100
RI4677 MOD. 100
RI4678 MOD. 115
RI4678 MOD. 115
RI4679 MOD. 125
RI4679 MOD. 125
RI4680 MOD. 140
RI4680 MOD. 140
RI4681 MOD. 160
RI4681 MOD. 160
RI4682 MOD. 180
RI4683 MOD. 200
RI4684 MOD. 230
RI4685 MOD. 270
RI4686 MOD. 330
