ELECTRIC PACKAGES
/
2 WAY ELECTRIC PACKAGES
/
8M128
2 WAY ELECTRIC PACKAGES

8M128

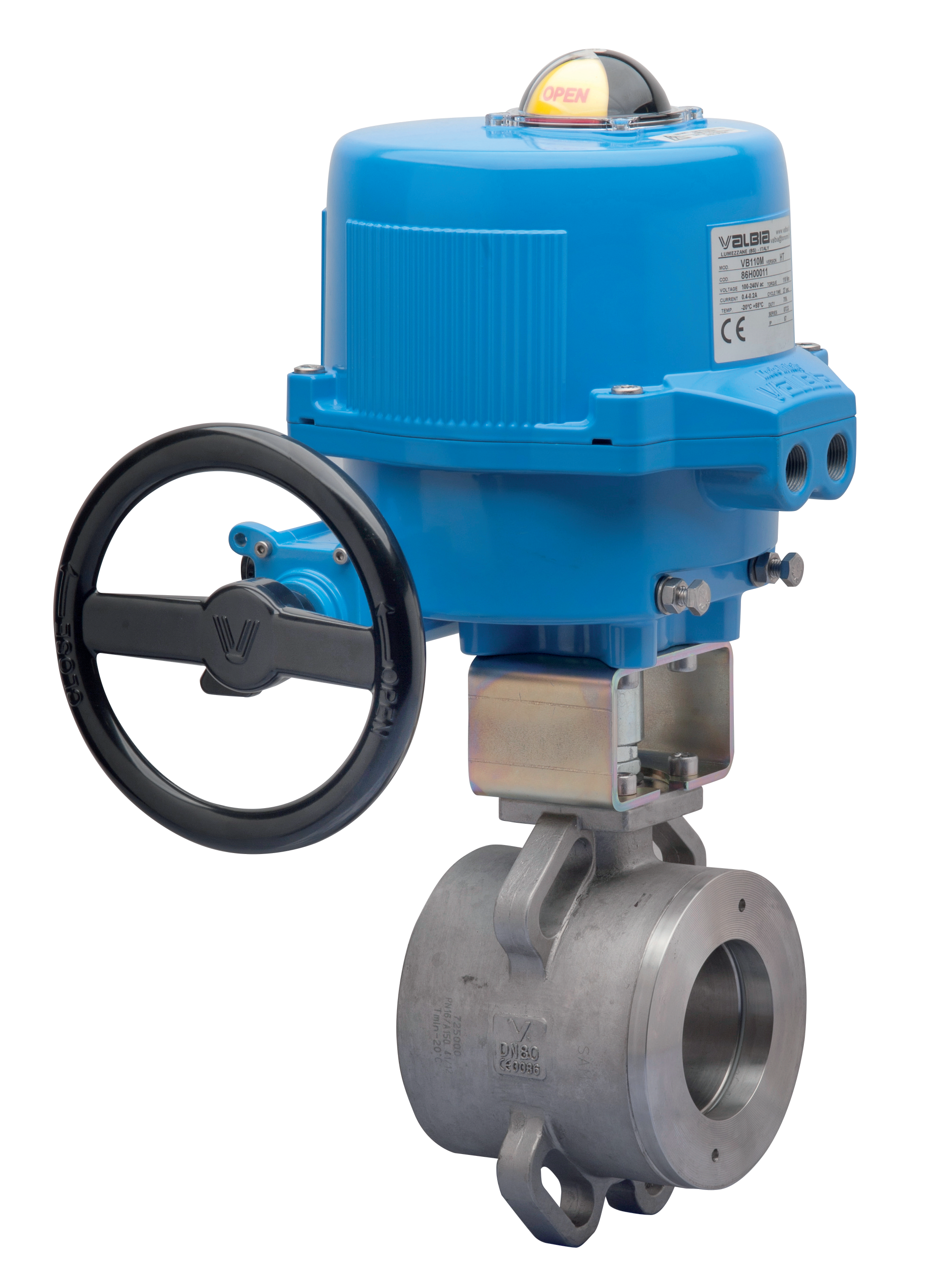

Wafer type full bore ball valve [Valpres art. 725000] CF8M, ANSI 150, PN10-PN16-PN40 (PN40, not available for DN65-80-100).

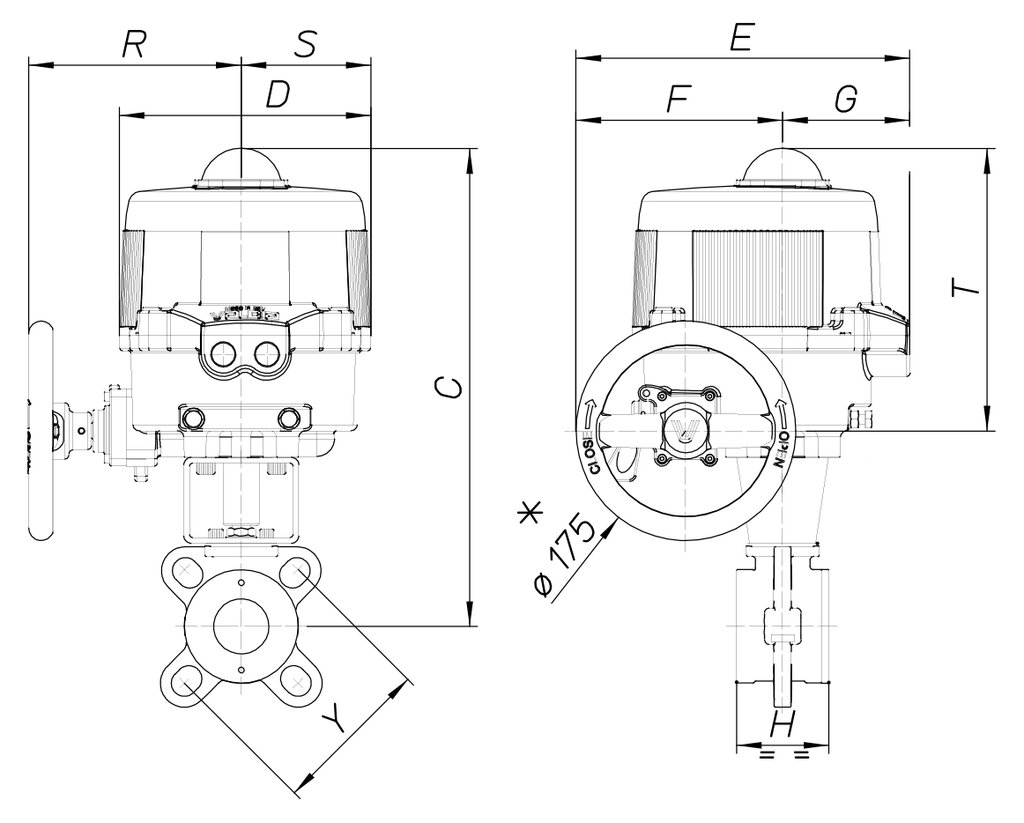

Technical specifications
MOD PN C D E F G H R S T Y ACT. RI
8M12800106 40 298 161 187 63 124 46 - - - PN10-PN16-PN40 ANSI150 VB 030M 4230
8M12800206 40 298 161 187 63 124 46 - - - PN10-PN16-PN40 ANSI150 VB 030M 4230
8M12800406 40 298 161 187 63 124 46 - - - PN10-PN16-PN40 ANSI150 VB 030M 4230
8M12800107 40 301 161 187 63 124 54 - - - PN10-PN16-PN40 ANSI150 VB 030M 4230
8M12800207 40 301 161 187 63 124 54 - - - PN10-PN16-PN40 ANSI150 VB 030M 4230
8M12800407 40 301 161 187 63 124 54 - - - PN10-PN16-PN40 ANSI150 VB 030M 4230
8M12800108 40 337 176 197 63 124 64 - - - PN10-PN16-PN40 ANSI150 VB 060M 4231
8M12800208 40 337 176 197 63 124 64 - - - PN10-PN16-PN40 ANSI150 VB 060M 4231
8M12800408 40 337 176 197 63 124 64 - - - PN10-PN16-PN40 ANSI150 VB 060M 4231
8M12800110 40 346 176 197 63 134 82 - - - PN10-PN16-PN40 ANSI150 VB 060M 4231
8M12800210 40 346 176 197 63 134 82 - - - PN10-PN16-PN40 ANSI150 VB 060M 4231
8M12800410 40 346 176 197 63 134 82 - - - PN10-PN16-PN40 ANSI150 VB 060M 4231
8M12800112 20 394 200 266 165 101 103 167 103 225 PN10-PN16-ANSI150 VB 110M 4233
8M12800212 20 394 200 266 165 101 103 167 103 225 PN10-PN16-ANSI150 VB 110M 4233
8M12800412 20 394 200 266 165 101 103 167 103 225 PN10-PN16-ANSI150 VB 110M 4233
8M12800114 20 404 200 266 165 101 122 167 103 225 PN10-PN16-ANSI150 VB 110M 4233
8M12800214 20 404 200 266 165 101 122 167 103 225 PN10-PN16-ANSI150 VB 110M 4233
8M12800414 20 404 200 266 165 101 122 167 103 225 PN10-PN16-ANSI150 VB 110M 4233
8M12800118 20 417 200 266 165 101 152 167 103 225 PN10-PN16-ANSI150 VB 270M 4233
8M12800218 20 417 200 266 165 101 152 167 103 225 PN10-PN16-ANSI150 VB 270M 4233
8M12800418 20 417 200 266 165 101 152 167 103 225 PN10-PN16-ANSI150 VB 270M 4233
