ELECTRIC PACKAGES
/
2 WAY ELECTRIC PACKAGES
/
8M057
2 WAY ELECTRIC PACKAGES

8M057

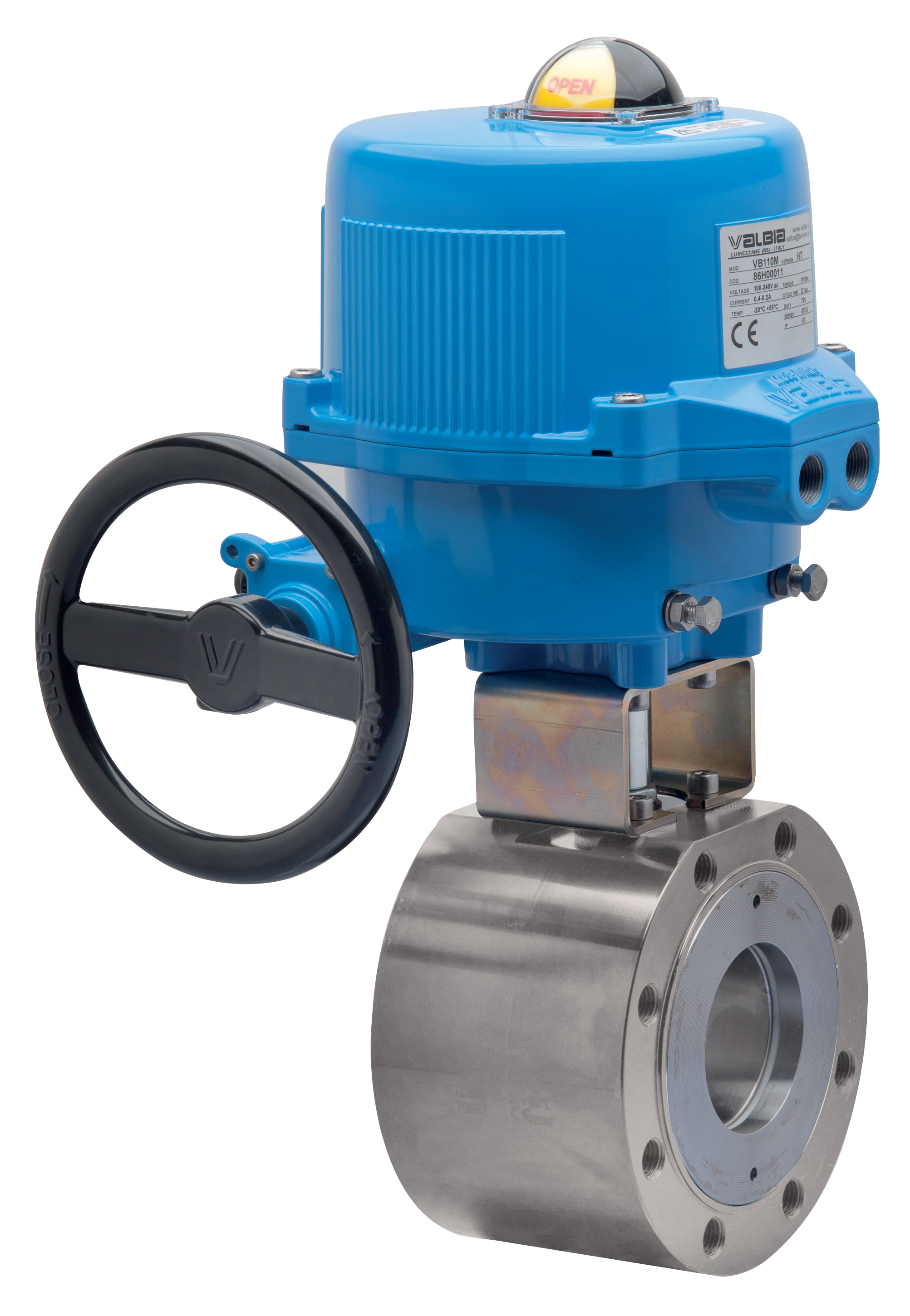

2 way Wafer ball valve [Valpres art. 720212] flanged ANSI 300, full bore, stainless steel AISI 316 CF8M.

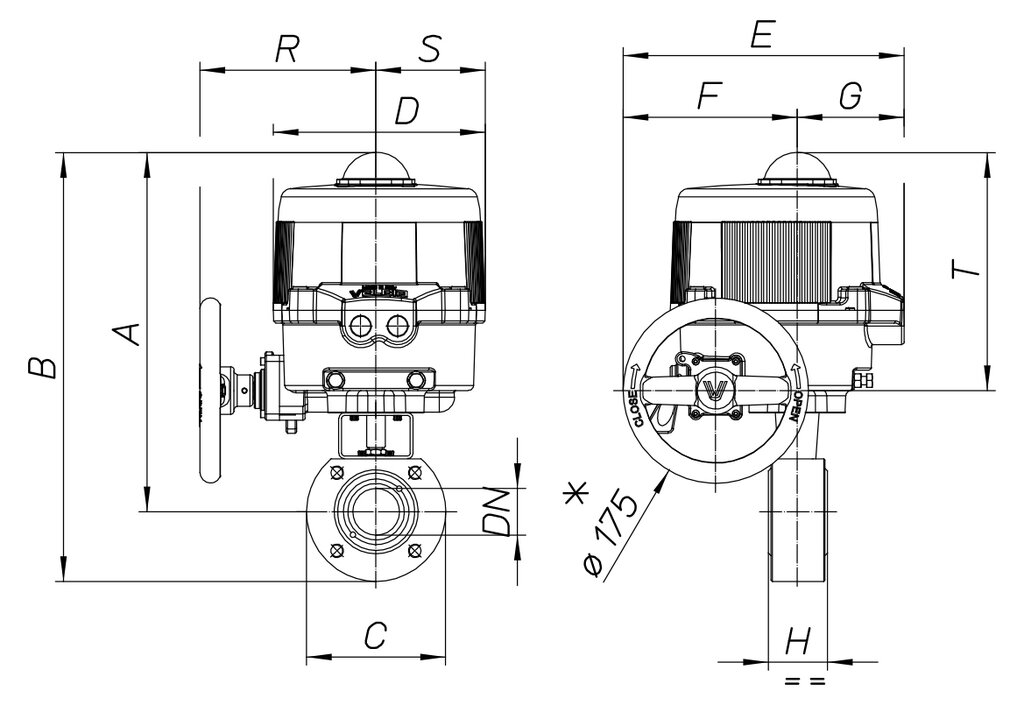

Technical specifications
MOD PN A B C D E F G H R S T ACT. KIT
8M05700104 50 285 332 95 161 187 63 124 35 - - - VB030M RI3805
8M05700204 50 285 332 95 161 187 63 124 35 - - - VB030M RI3805
8M05700404 50 285 332 95 161 187 63 124 35 - - - VB030M RI3805
8M05700105 50 291 351 120 161 187 63 124 40 - - - VB030M RI4041
8M05700205 50 291 351 120 161 187 63 124 40 - - - VB030M RI4041
8M05700405 50 291 351 120 161 187 63 124 40 - - - VB030M RI4041
8M05700106 50 297 357 120 161 187 63 124 46 - - - VB030M RI4042
8M05700206 50 297 357 120 161 187 63 124 46 - - - VB030M RI4042
8M05700406 50 297 357 120 161 187 63 124 46 - - - VB030M RI4042
8M05700107 50 297 362 130 161 187 63 124 54 - - - VB030M RI4043
8M05700207 50 297 362 130 161 187 63 124 54 - - - VB030M RI4043
8M05700407 50 297 362 130 161 187 63 124 54 - - - VB030M RI4043
8M05700108 50 338 413 150 176 197 63 134 64 - - - VB060M RI4245
8M05700208 50 338 413 150 176 197 63 134 64 - - - VB060M RI4245
8M05700408 50 338 413 150 176 197 63 134 64 - - - VB060M RI4245
8M05700110 50 351 434 165 176 197 63 134 82 - - - VB060M RI4044
8M05700210 50 351 434 165 176 197 63 134 82 - - - VB060M RI4044
8M05700410 50 351 434 165 176 197 63 134 82 - - - VB060M RI4044
8M05700112 50 412 507 190 200 266 165 101 106 167 103 225 VB110M RI3810
8M05700212 50 412 507 190 200 266 165 101 106 167 103 225 VB110M RI3810
8M05700412 50 412 507 190 200 266 165 101 106 167 103 225 VB110M RI3810
8M05700114 50 420 525 210 200 266 165 101 122 167 103 225 VB190M RI3810
8M05700214 50 420 525 210 200 266 165 101 122 167 103 225 VB190M RI3810
8M05700414 50 420 525 210 200 266 165 101 122 167 103 225 VB190M RI3810
8M05700118 50 441 568 254 212 279 184 95 152 166 109 226 VB270M RI3811
8M05700218 50 441 568 254 212 279 184 95 152 166 109 226 VB270M RI3811
8M05700418 50 441 568 254 212 279 184 95 152 166 109 226 VB270M RI3811
