ELECTRIC PACKAGES
/
2 WAY ELECTRIC PACKAGES
/
8M054
2 WAY ELECTRIC PACKAGES

8M054

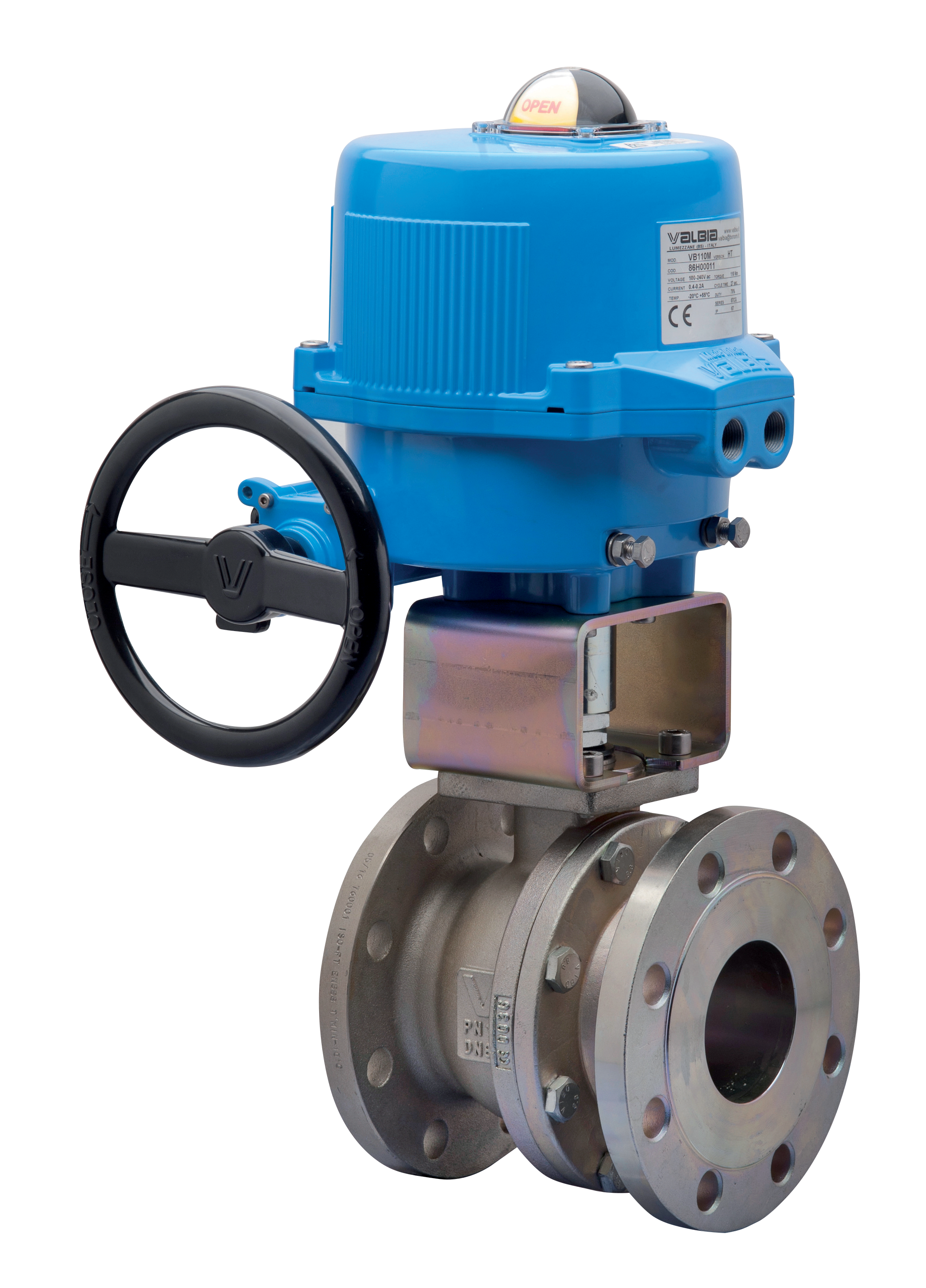

Split Body [Valpres art. 760001] full bore flanged PN16 ball valve, carbon steel WCB, Fire Safe, Antistatic Device, face to face EN558 basic series 27, classified ATEX Ex II 2 G/D c T3, with electric actuator series 86.
Technical specifications
MOD PN A B C D E F G H R S T ACT. KIT
8M05400106 40 305 362 115 161 187 63 124 125 - - - VB 030M RI3520
8M05400206 40 305 362 115 161 187 63 124 125 - - - VB 030M RI3520
8M05400406 40 305 362 115 161 187 63 124 125 - - - VB 030M RI3520
8M05400107 40 329 399 140 176 197 63 134 130 - - - VB 060M RI3525
8M05400207 40 329 399 140 176 197 63 134 130 - - - VB 060M RI3525
8M05400407 40 329 399 140 176 197 63 134 130 - - - VB 060M RI3525
8M05400108 40 357 432 150 176 197 63 134 140 - - - VB 060M RI3521
8M05400208 40 357 432 150 176 197 63 134 140 - - - VB 060M RI3521
8M05400408 40 357 432 150 176 197 63 134 140 - - - VB 060M RI3521
8M05400110 40 364 446 165 176 197 63 134 150 - - - VB 060M RI4039
8M05400210 40 364 446 165 176 197 63 134 150 - - - VB 060M RI4039
8M05400410 40 364 446 165 176 197 63 134 150 - - - VB 060M RI4039
8M05400112 16 400 492 185 200 266 165 101 170 167 103 225 VB 110M RI3522
8M05400212 16 400 492 185 200 266 165 101 170 167 103 225 VB 110M RI3522
8M05400412 16 400 492 185 200 266 165 101 170 167 103 225 VB 110M RI3522
8M05400114 16 434 534 200 200 266 165 101 180 167 103 225 VB 110M RI3523
8M05400214 16 434 534 200 200 266 165 101 180 167 103 225 VB 110M RI3523
8M05400414 16 434 534 200 200 266 165 101 180 167 103 225 VB 110M RI3523
8M05400118 16 448 558 220 200 266 165 101 190 167 103 225 VB 190M RI3552
8M05400218 16 448 558 220 200 266 165 101 190 167 103 225 VB 190M RI3552
8M05400418 16 448 558 220 200 266 165 101 190 167 103 225 VB 190M RI3552
8M05400119 16 472 597 250 212 279 184 95 325 166 109 226 VB 270M RI3528
8M05400219 16 472 597 250 212 279 184 95 325 166 109 226 VB 270M RI3528
8M05400419 16 472 597 250 212 279 184 95 325 166 109 226 VB 270M RI3528
8M05400120 16 504 647 285 212 279 184 95 350 166 109 226 VB 350M RI3553
8M05400220 16 504 647 285 212 279 184 95 350 166 109 226 VB 350M RI3553
8M05400420 16 504 647 285 212 279 184 95 350 166 109 226 VB 350M RI3553
