8E178
2 WAY ELECTRIC PACKAGES

8E178

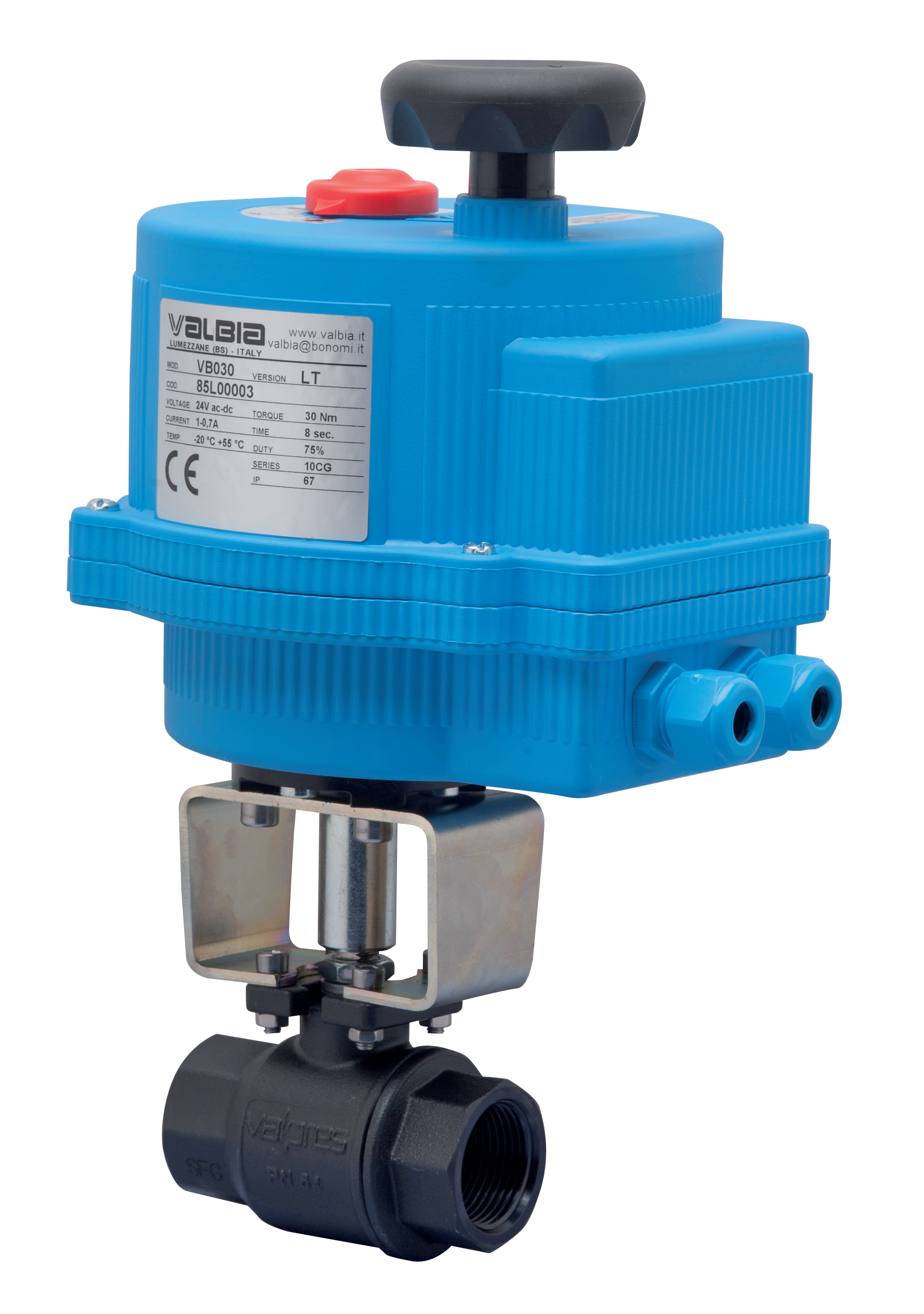

2 way ball valve [Valpres Art. 705000], carbon steel astm a105-wcb, with ball and stem in stainless steel aisi 304, threaded f/f, full bore with electric actuator.
Technical specifications
MOD PN A B C D E F G H ACT. RI
8E17800102 64 1/4'' 198 183 123 164 43 121 55 VB 015 3782
8E17800202 64 1/4'' 198 183 123 164 43 121 55 VB 015 3782
8E17800402 64 1/4'' 198 183 123 164 43 121 55 VB 015 3782
8E17800103 64 3/8'' 198 183 123 164 43 121 55 VB 015 3782
8E17800203 64 3/8'' 198 183 123 164 43 121 55 VB 015 3782
8E17800403 64 3/8'' 198 183 123 164 43 121 55 VB 015 3782
8E17800104 64 1/2'' 204 186 123 164 43 121 66 VB 015 3782
8E17800204 64 1/2'' 204 186 123 164 43 121 66 VB 015 3782
8E17800404 64 1/2'' 204 186 123 164 43 121 66 VB 015 3782
8E17800105 64 3/4'' 251 228 123 164 43 121 79 VB 015 3781
8E17800205 64 3/4'' 251 228 123 164 43 121 79 VB 015 3781
8E17800405 64 3/4'' 251 228 123 164 43 121 79 VB 015 3781
8E17800106 64 1'' 306 279 157 191 61 130 93 VB 030 3030
8E17800206 64 1'' 306 279 157 191 61 130 93 VB 030 3030
8E17800406 64 1'' 306 279 157 191 61 130 93 VB 030 3030
8E17800107 64 1''1/4 315 283 157 191 61 130 98 VB 030 3030
8E17800207 64 1''1/4 315 283 157 191 61 130 98 VB 030 3030
8E17800407 64 1''1/4 315 283 157 191 61 130 98 VB 030 3030
8E17800108 64 1''1/2 370 330 185 215 68 147 110 VB 060 3031
8E17800208 64 1''1/2 370 330 185 215 68 147 110 VB 060 3031
8E17800408 64 1''1/2 370 330 185 215 68 147 110 VB 060 3031
8E17800110 64 2'' 385 337 185 215 68 147 130 VB 060 3031
8E17800210 64 2'' 385 337 185 215 68 147 130 VB 060 3031
8E17800410 64 2'' 385 337 185 215 68 147 130 VB 060 3031
